Aprašymas

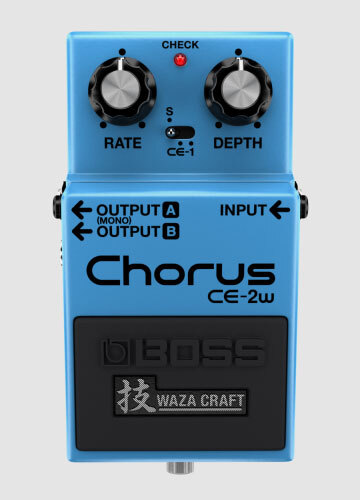

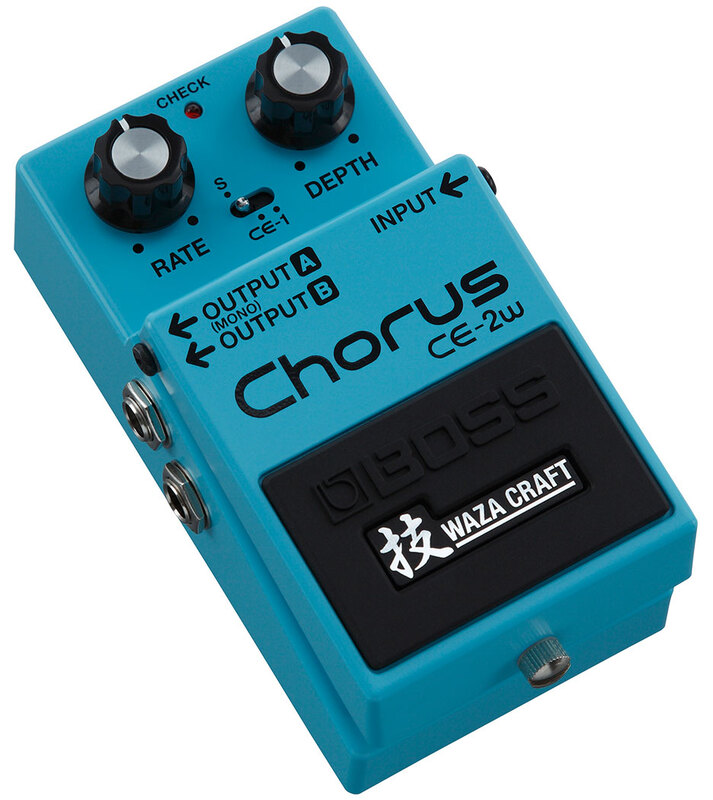

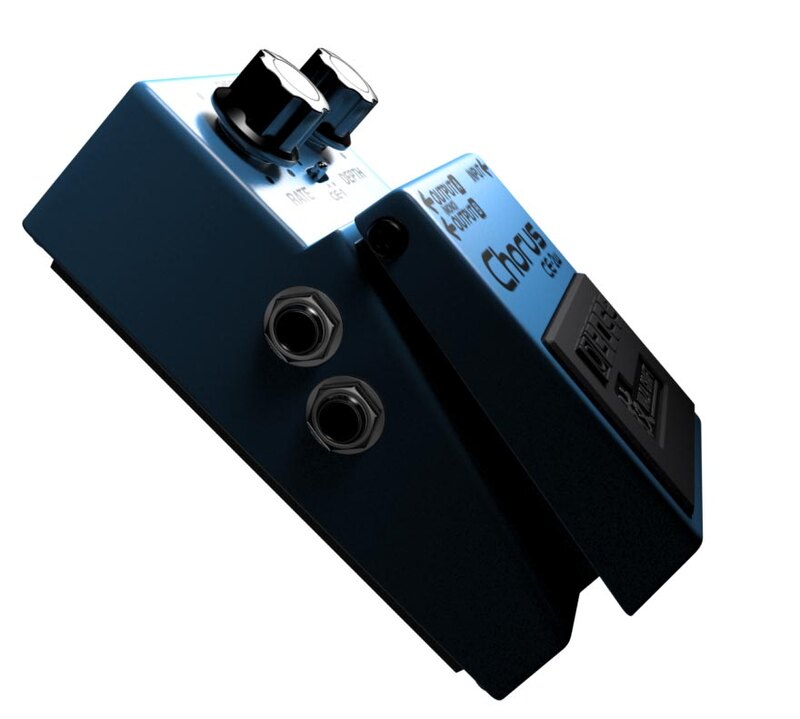

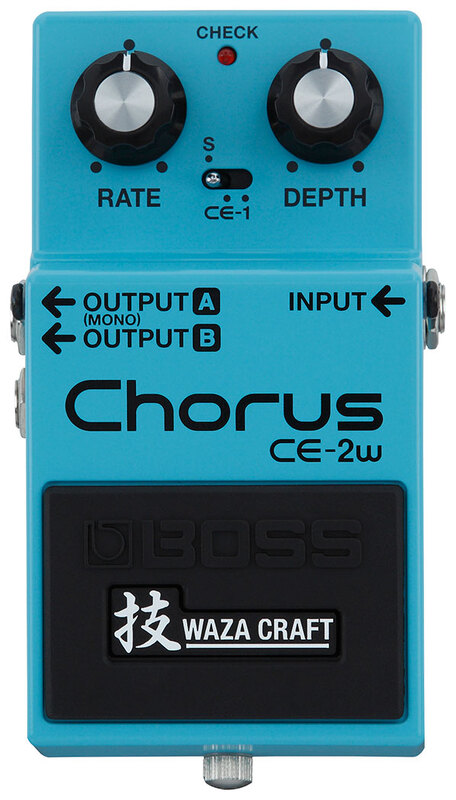

The CE-2W is a compact all-analog chorus pedal using a bucket-brigade delay line. A mode switch selects between Standard, which reproduces the milder CE-2 chorus, and CE-1 mode, which offers both the CE-1 chorus and its vibrato sound. Rate and Depth knobs adjust the modulation in either mode.
Two additions go beyond the original pedals: stereo output in Standard mode, which the mono-only CE-2 lacked, and a variable depth control for the CE-1 chorus. The pedal has a buffered bypass and a check indicator that doubles as a battery check.
It has a mono input, two output jacks (A/MONO and B) for mono or stereo rigs, and a DC input. Power comes from a 9V battery, which is included, or from an optional PSA-series AC adaptor. The pedal is made in Japan and carries a five-year warranty.
Specifikacijos
- Gamintojas
- Boss
- Modelis
- CE-2W
- Kategorija
- Efektai ir pedalai
Audio
- Modes
- 3 modes: Standard, CE-1 Chorus, CE-1 Vibrato
- Nominal input level
- -20 dBu
- Input impedance
- 1 M ohm
- Nominal output level
- -20 dBu
- Output impedance
- 1 k ohm
- Recommended load impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
Controls
- Controls
- Pedal switch, Standard/CE-1 mode switch, RATE knob, DEPTH knob
- Indicator
- CHECK indicator (also serves as battery check)
Connectivity
- Input
- INPUT jack: 1/4-inch phone type
- Output A
- OUTPUT A (MONO) jack: 1/4-inch phone type
- Output B
- OUTPUT B jack: 1/4-inch phone type
- DC input
- DC IN jack
Power
- Power supply
- Alkaline battery (9V, 6LR61) or carbon-zinc battery (9V, 6F22); AC adaptor (sold separately)
- Current draw
- 25 mA
- Battery life, alkaline
- Approx. 32 hours (continuous use)
- Battery life, carbon
- Approx. 18 hours (continuous use)
- Optional AC adaptor
- PSA series (sold separately)
Physical
- Width
- 73 mm (2-7/8 inches)
- Depth
- 129 mm (5-1/8 inches)
- Height
- 59 mm (2-3/8 inches)
- Weight (including battery)
- 450 g (1 lb)
In the box
- Included accessories
- Leaflet, alkaline battery (9V, 6LR61)
