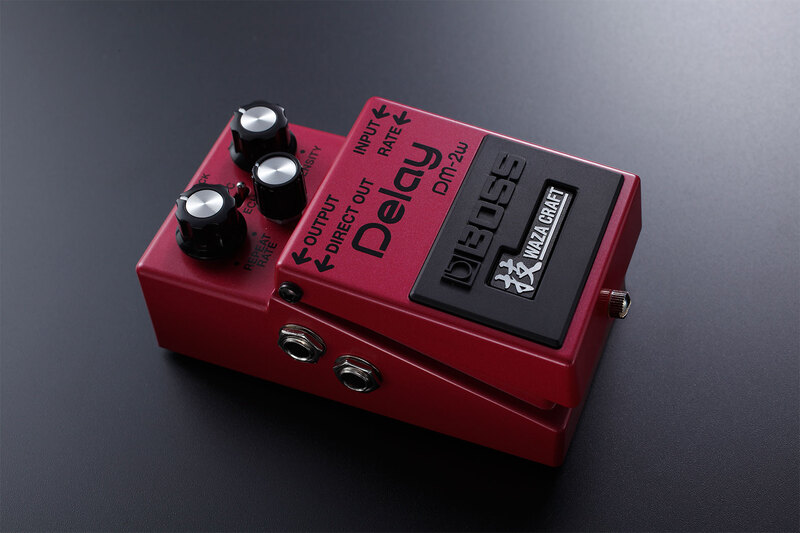

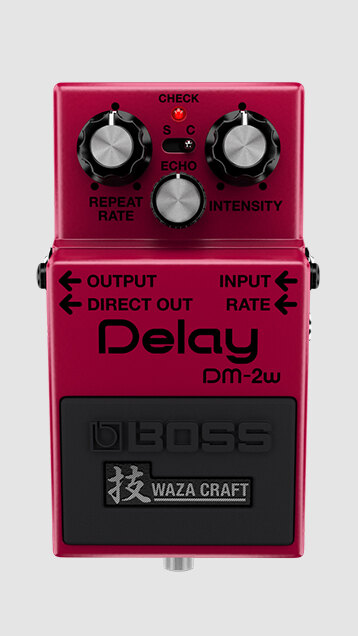

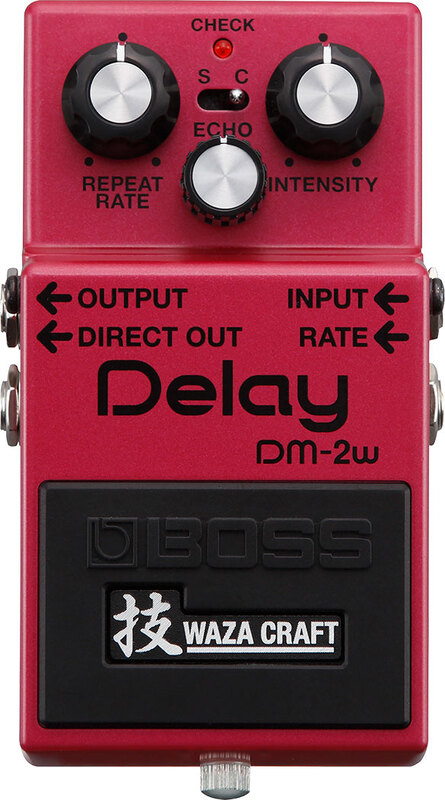

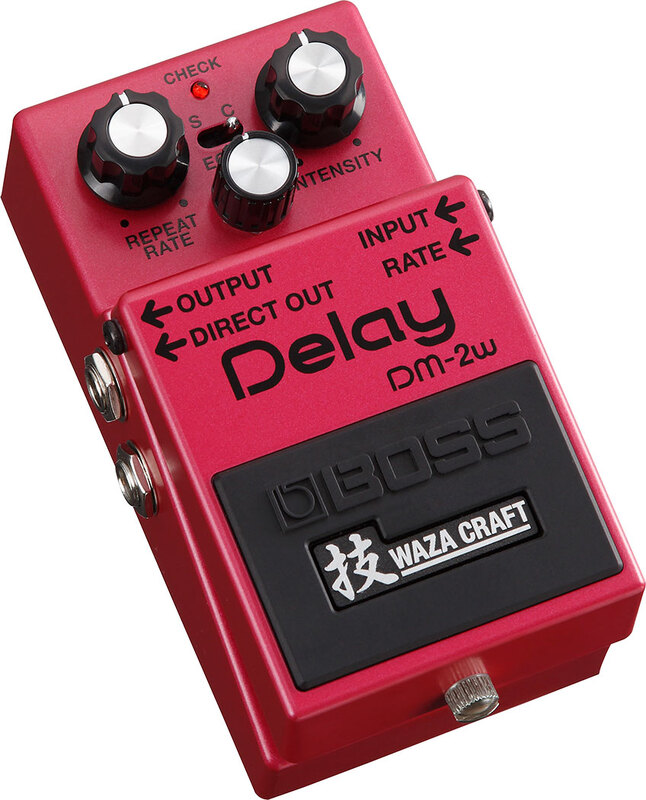

The DM-2W is an all-analog delay pedal built around a BBD (bucket brigade) delay line, made in Japan as part of the Waza Craft range. It reproduces the sound of the original DM-2 discontinued in 1984 and adds a second voicing for contemporary use.
A mode switch selects between Standard and Custom. Standard recreates the original character with a delay time of 20 to 300 ms. Custom gives a cleaner analog tone and extends the delay time from 40 to 800 ms. Repeat Rate, Intensity and Echo knobs control the delay, and a CHECK indicator doubles as a battery check light.
The pedal has an input and an output jack, plus a separate Direct Out for sending the dry signal and the delayed signal to different destinations. A TRS Rate jack accepts an expression pedal such as the Roland EV-5 for foot control of delay time. It runs on a 9 V battery or a PSA-series AC adaptor, which is sold separately.
Specifikacijos
- Gamintojas
- Boss
- Modelis
- DM-2W
- Kategorija
- Efektai ir pedalai
Audio
- Circuit
- All-analog, BBD (bucket brigade) delay line
- Delay time (Standard mode)
- 20 ms to 300 ms
- Delay time (Custom mode)
- 40 ms to 800 ms
- Nominal input level
- -20 dBu
- Input impedance
- 1 M ohm
- Nominal output level
- -20 dBu
- Output impedance
- 1 k ohm
- Recommended load impedance
- 10 k ohms or greater
Controls
- Controls
- Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch
- Indicator
- CHECK indicator (also serves as battery check indicator)
Connectivity
- Input
- INPUT jack: 1/4-inch phone type
- Output
- OUTPUT jack: 1/4-inch phone type
- Direct output
- DIRECT OUT jack: 1/4-inch phone type
- Expression pedal input
- RATE jack: 1/4-inch TRS phone type
- Power input
- DC IN jack
Power
- Power supply
- Alkaline battery (9 V, 6LR61) or carbon-zinc battery (9 V, 6F22); AC adaptor (PSA series, sold separately)
- Current draw
- 35 mA
- Battery life, alkaline
- Approx. 15 hours (continuous use)
- Battery life, carbon
- Approx. 5 hours (continuous use)
Physical
- Width
- 73 mm (2-7/8 inches)
- Depth
- 129 mm (5-1/8 inches)
- Height
- 59 mm (2-3/8 inches)
- Weight
- 460 g (1 lb 1 oz)
- Made in
- Japan
- Warranty
- BOSS five-year warranty
In the box
- Included
- Leaflet, alkaline battery (9 V, 6LR61)
- Optional
- AC adaptor PSA series; Roland EV-5 expression pedal
