Aprašymas

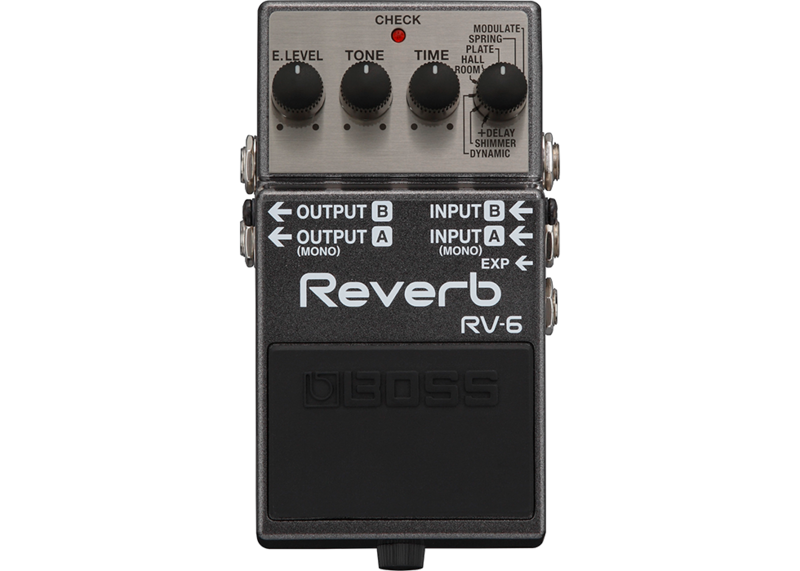

The RV-6 is a stompbox reverb built on newly developed studio-grade algorithms and BOSS DSP. A Mode knob selects one of eight voicings: Hall, Plate, Room, Spring, Modulate, +Delay, Shimmer and Dynamic. Dynamic mode adjusts effect depth according to playing touch, so the reverb stays deep without clouding the tone.

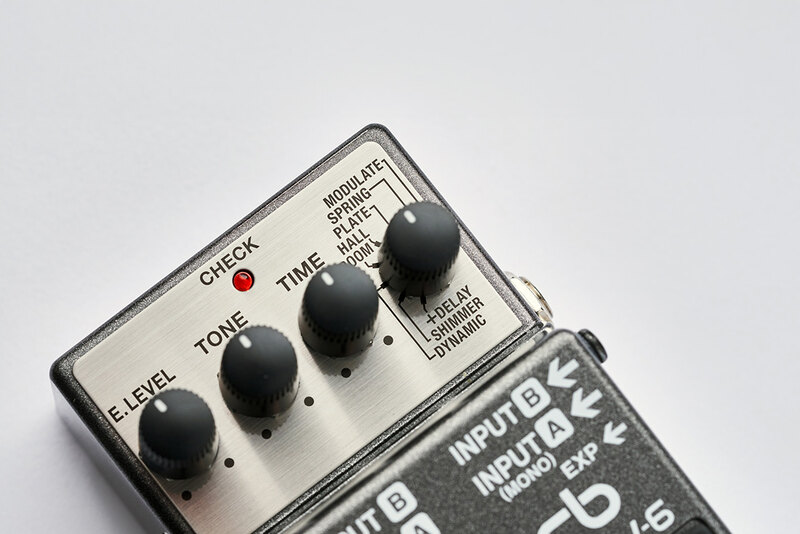

Controls are limited to Mode, Time, Tone and E.Level knobs plus a pedal switch. Behind the Time and Tone knobs, multiple internal reverb parameters shift together to give each setting a voicing tuned for guitar. The dry signal is kept analog while the effect is blended in.
The pedal has auto-switching input and output jacks (A/Mono and B) for mono, mono-to-stereo and stereo-to-stereo setups. Using only input B gives a 100-percent wet output, which suits parallel processing chains and mixers. An EXP jack accepts an optional expression pedal to control effect level in real time. Power comes from a 9V battery or an optional AC adaptor.
Specifikacijos
- Gamintojas
- Boss
- Modelis
- RV-6
- Kategorija
- Efektai ir pedalai
Audio
- Reverb modes
- 8 modes (Hall, Plate, Room, Spring, Modulate, +Delay, Shimmer, Dynamic)
- Nominal input level
- -20 dBu
- Input impedance
- 1 M ohm
- Nominal output level
- -20 dBu
- Output impedance
- 1 k ohm
- Recommended load impedance
- 10 k ohms or greater
Controls
- Knobs
- E.LEVEL, TONE, TIME, MODE
- Switch
- Pedal switch
- Indicator
- CHECK indicator (also serves as battery check)
Connectivity
- Inputs
- INPUT-A (MONO) jack, INPUT-B jack
- Outputs
- OUTPUT-A (MONO) jack, OUTPUT-B jack
- Expression pedal input
- EXP jack
- Power input
- AC adaptor jack (DC 9 V)
Power
- Power supply
- Alkaline battery (9V, 6LR61) or AC adaptor (sold separately)
- Current draw
- 95 mA
- Battery life (continuous use)
- Alkaline: Approx. 3 hours
Physical
- Width
- 73 mm (2-7/8 inches)
- Depth
- 129 mm (5-1/8 inches)
- Height
- 59 mm (2-3/8 inches)
- Weight (including battery)
- 450 g (1 lb)
In the box
- Included
- Leaflet, alkaline battery (9V, 6LR61)
Options
- AC adaptor
- PSA series (sold separately)
- Expression pedal
- BOSS FV-500H, FV-500L, Roland EV-5 (sold separately)
